PATRIOT 40/50

Description

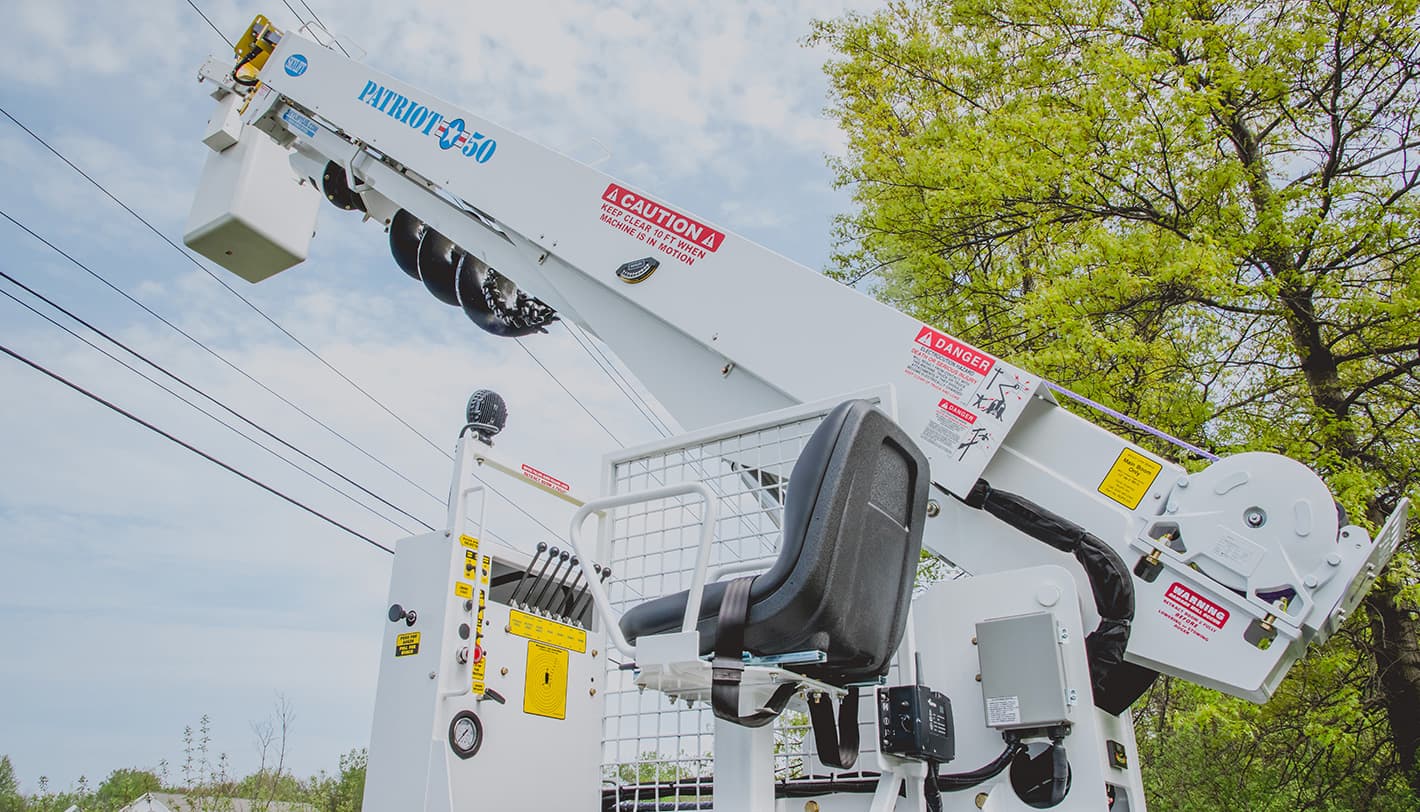

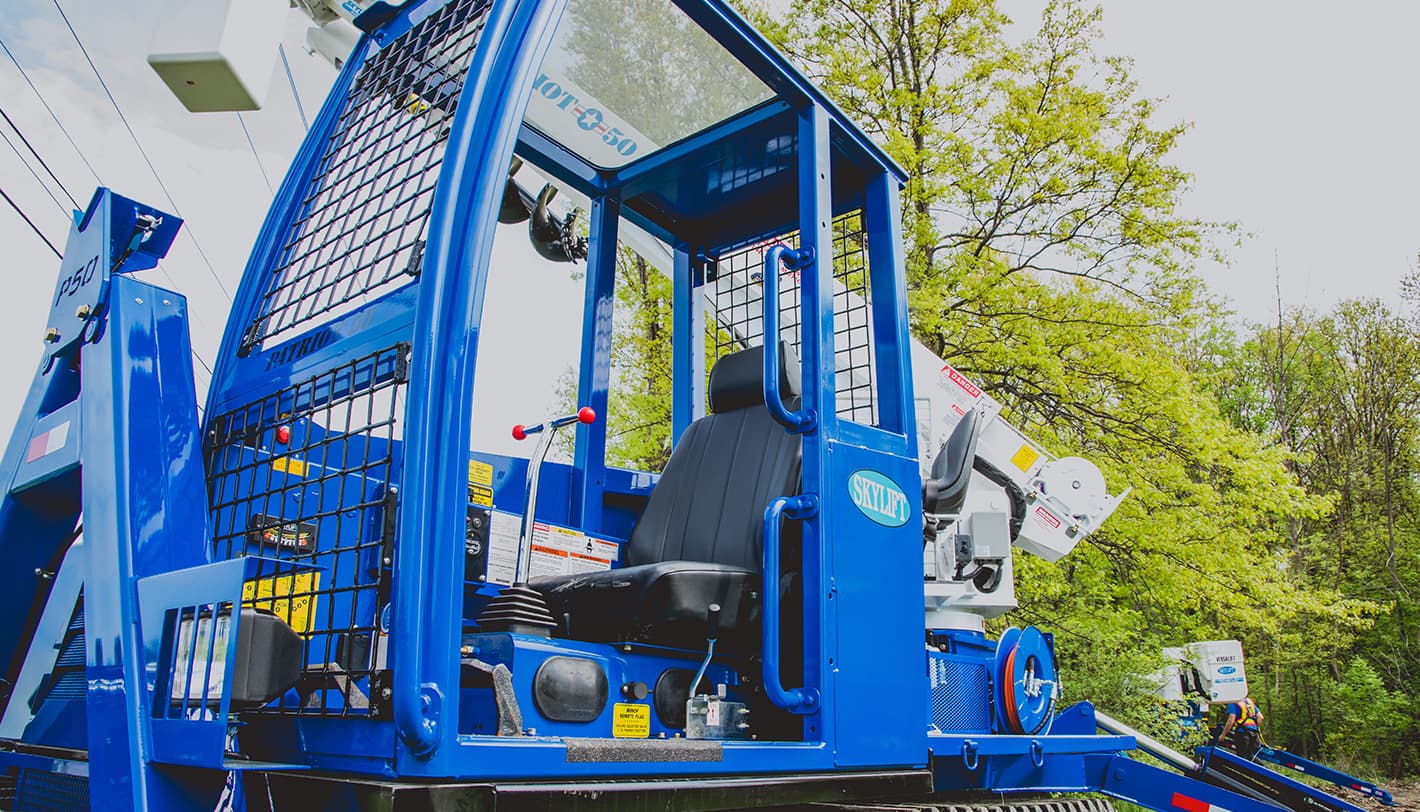

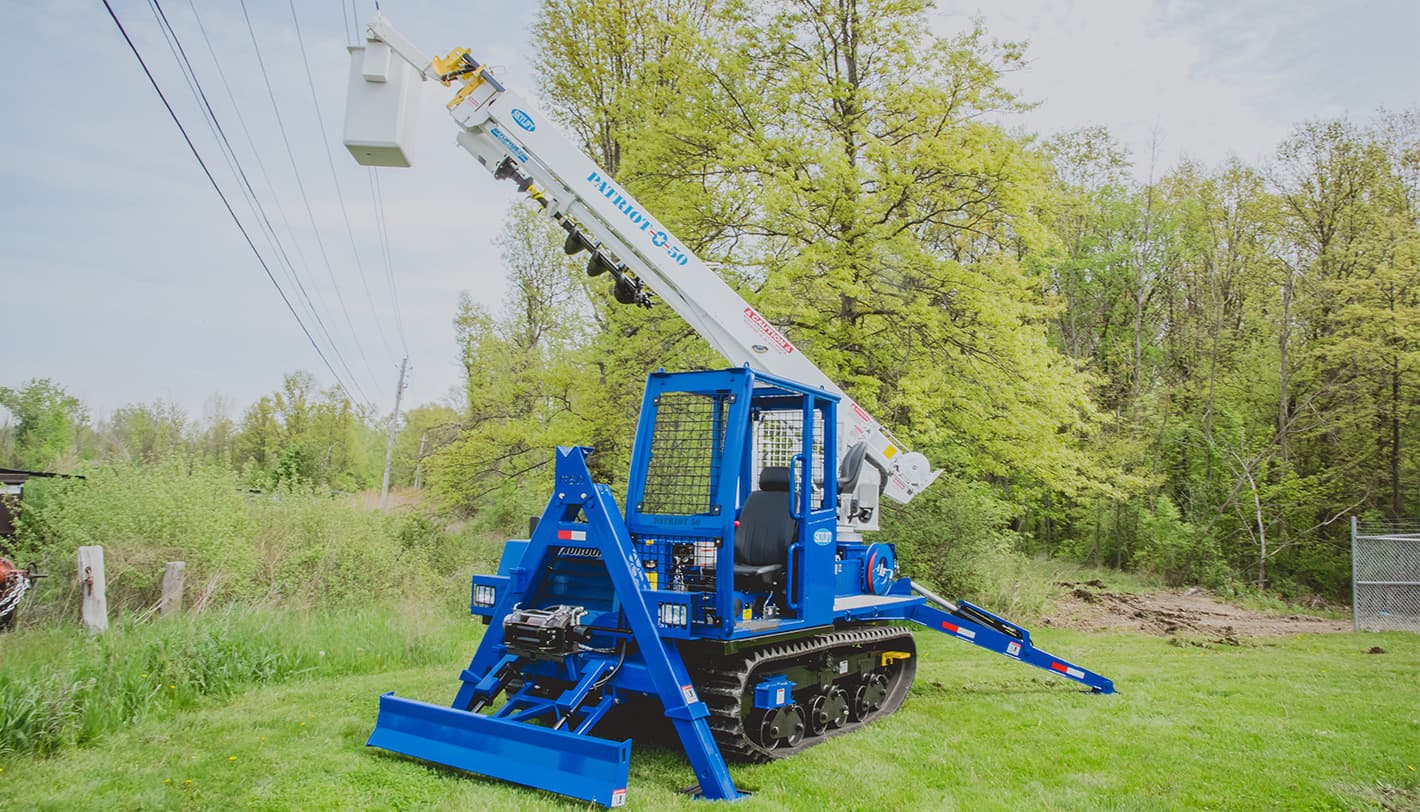

The Patriot is Skylift’s rugged, off-road digger derrick that features either a 40 or 50 foot boom. This ride-on digger derrick gets you to the jobsite where typical utility trucks are unable to. With 10,500 ft/lbs of auger digging torque, 6,000 lb lifting capacity and a closed or open cab available, the Patriot has what you need to get the job done in even the worst of conditions.

Specifications

  • Weight: 40′ – 15,880 lbs / 50′ – 16,860 lbs.
  • Length: 40′ – 17’5″ L / 50′ – 21′ L
  • Height: 9′ Overall
  • Width: 77″
  • Tracks: Rubber

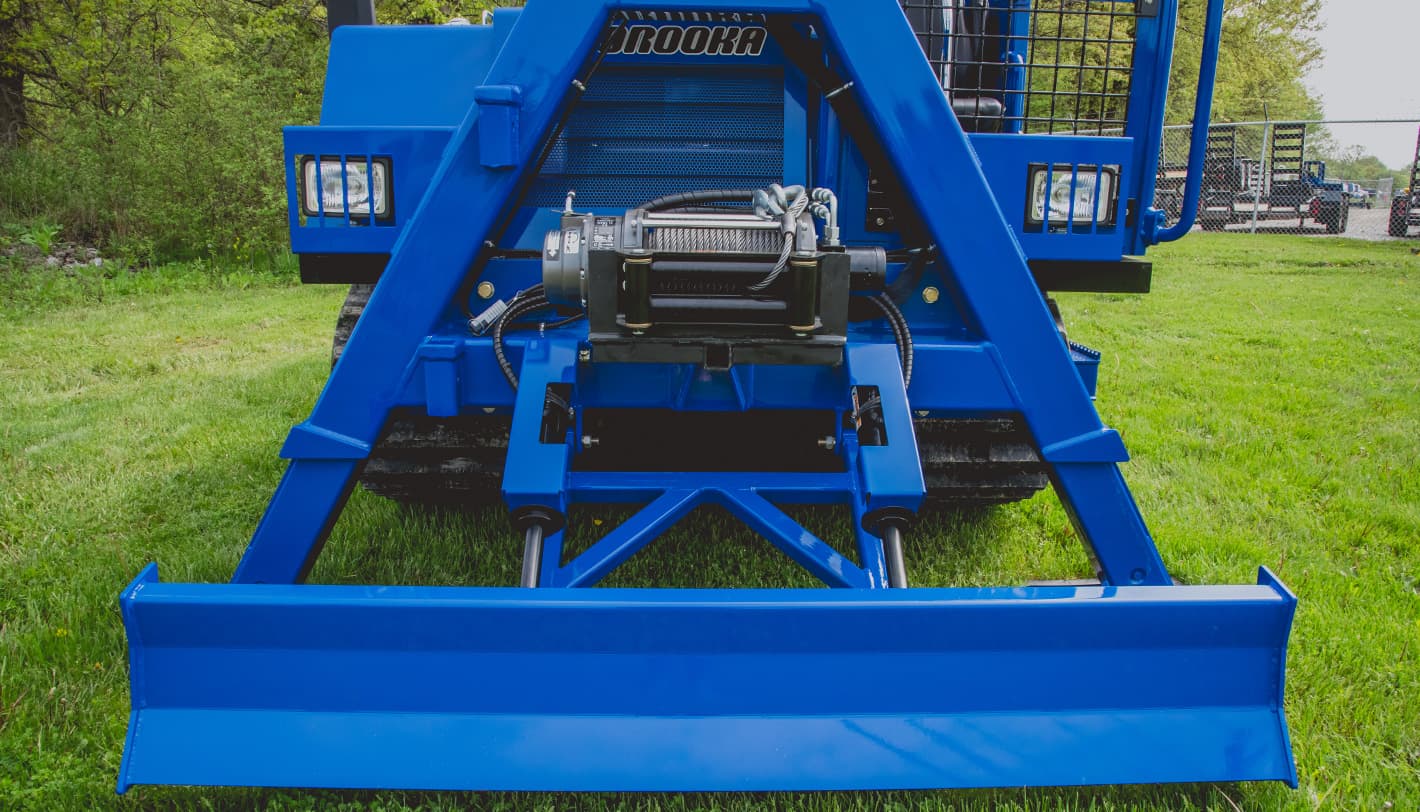

  • Winch: 6,000 lbs.
  • Sheave Height: 41′ / 51′
  • Side Reach: 35′ / 45′
  • Digging Radius: 22′ / 30′
  • Insulation: 46 kv Category C / Fiberglass Boom
